Toyota LandCruiser

Toyota LandCruiser 200 Series GX Models 2007-2021

GVM Increase 4000kg

Pre Registration

Post Registration

F4R Adjustable Remote Reservoir lift kit, the best performance and the most comfortable ride onroad and offroad, bar none.

Kit Contains:

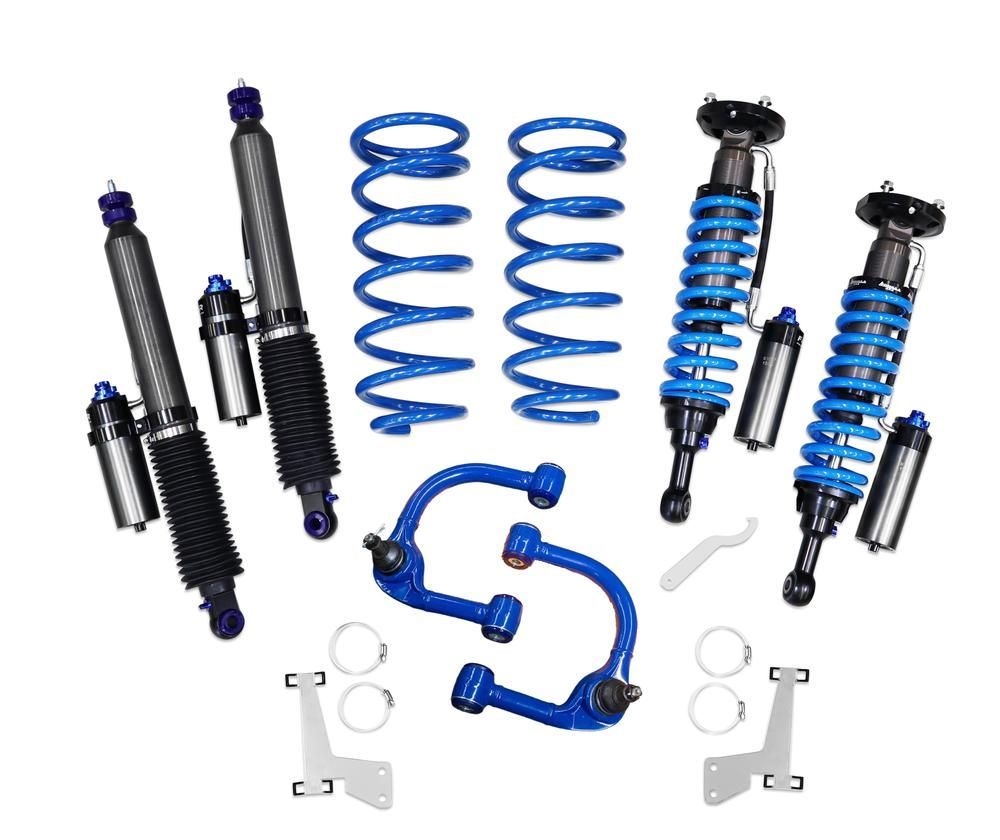

Formula F4R Shock Absorber Kit 91017 x 1, 92017 x 1, Formula F4R Springs KTRR-131HD-F4R x 1, Load Capacity Label LC200LOADCL x 1, Cat 6 Indicators 77ACM2-GVM-IND x 1, Tyre Placards LC200PLACARD x 1

to suit GX models

Formula F4R Adjustable Remote Reservoir Kit is set to:

Front: 40mm

Rear: 40mm

4000kg Formula 4x4 F4R Formula 4x4 GVM Upgrade Kit to suit Toyota LandCruiser 200 Series GX Models 2007-2021

After you have purchased this lift kit, someone from our team of suspension experts will contact you to confirm your order details, your requirements, and your vehicle specifications. All to ensure that we give you the right product. If you purchase this lift kit using our click & fit service, we will confirm your installation date at the same time.

GVM Kits will only be shipped directly to our certified dealers and can only be installed by an authorised and approved Fulcrum Suspension Workshop.

GVM upgrades require engineering approval and certification. This means that this GVM upgrade can only be installed at one of our Authorised workshops. Our Click & Fit service allows you to buy this GVM kit online and choose a local installer.

High Level Product Details

• Pre-set to 40mm lift
• Preload adjustable spring to adjust vehicle height
• 3-way adjustable remote res front damper
• 2-way adjustable remote res rear damper
• 8 low speed compression, 6 high speed compression & 12 rebound settings front & rear
• Heavy duty 22mm damper shaft
• Shock open length front: 610mm
• Shock closed length front: 450mm
• Shock travel front: 160mm
• Shock open length rear: 624mm
• Shock closed length rear: 412mm
• Shock travel rear: 212mm
• 7075 aviation aluminium body
• Mono shock design with remote reservoir
• SuperPro front shock bottom and top mount
• SuperPro top and bottom rear shock bushes
• Custom mounting brackets for front reservoir
• Shock body mounting brackets for rear reservoirUnlimited Kilometer warranty.

Formula F4R Remote Res Shock - Adjustable GVM Upgrade Kit

Designed specifically for the LC 200 Series, and benchmarked against the industries best. This Formula F4R Remote Reservoir lift kit, offer the best performance and the most comfortable ride onroad and offroad, bar none.

• An ultra-adjustable remote reservoir shock, valved to maximise comfort & performance in all types of terrain.
• Improved Cavitation resistance, giving greater driving consistency on the roughest roads and toughest tracks.
• Built tough with a 7075 aviation aluminium body, massive bore, custom piston & light 6061-T6 aluminium supports.
• Designed to provide sharp handling on and off road, whilst giving an extremely comfortable ride.
• Precisely calibrated, with vehicle specific damping and a large custom piston to control performance + comfort.
• Increased oil volume and thermal capacity, providing consistent and dependable performance.
• The F4R damper adjustment range is designed to accommodate a variety of springs, loads & heights.
• Fully Customisable & Rebuildable
