Toyota Hilux

Toyota Hilux GGN, GUN 2015-on

3501kg Bilstein GVM Upgrade Kit to suit Toyota Hilux GGN, GUN 2015-on

GVM increase to 3501kgs


Pre-Registration

Post-Registration


Great for those that enjoy feeling the road while driving. Stiffer shock valving suited to on road performance. Good for tough tracks.

Kit Contains:

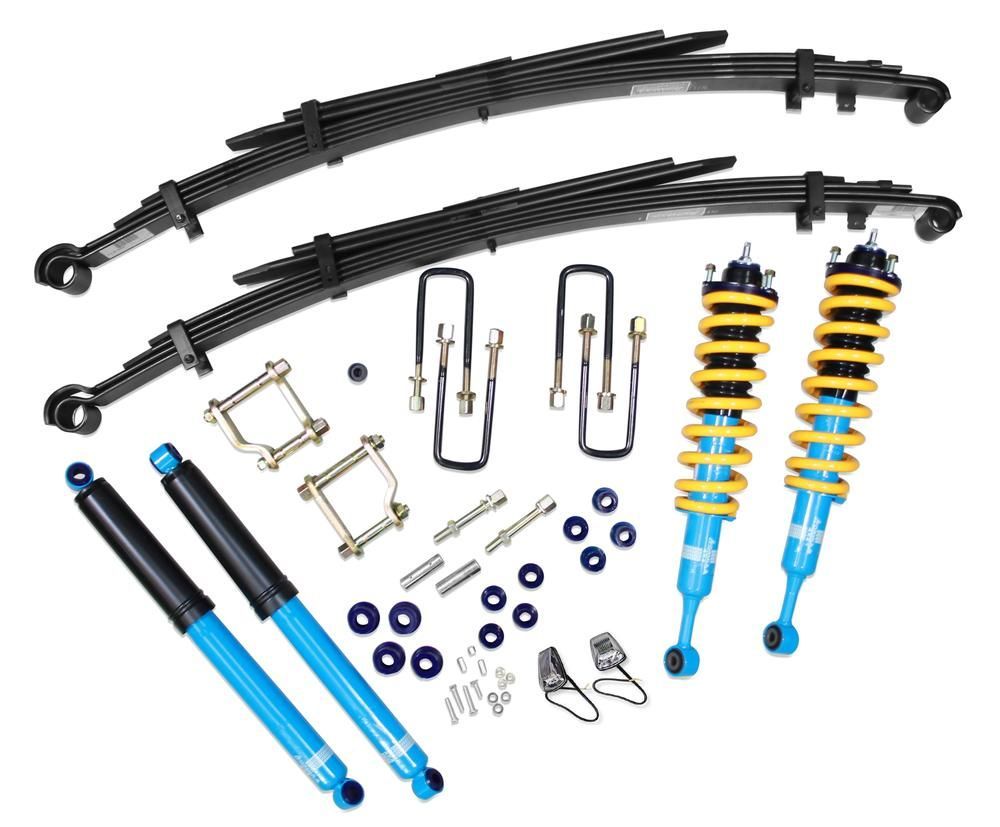

Bilstein Shock Absorbers BE5-D563 x 2 & 24-266451 x 2, Strut Mounts RS002 x 2 , King Springs KTFR-101HT x 1, Formula 4x4 Leaf Springs FLS-105 x 2, Formula 4x4 U-Bolts FUB-006 x 4

SuperPro Shackle, Pin & Bush Kit KIT219SK x 1, SuperPro Brake Line Spacer Kit SPF4855K x 1, Tyre Placard HILUXPLACARD x 1, Cat 6 Indicators 77ACM-3AMP x 1, Loom 77LC-LOOM, Load Capacity Label HILUXLOADCL x 1, Document Kit


TRC6470 is approved as an optional extra and is recommended for post rego vehicles


All GVM Upgrade Kits are supplied with appropriate documentation and can only be fitted by an authorised and approved Fulcrum Workshop.

3500kg Bilstein GVM Upgrade Kit to suit Toyota Hilux GGN / GUN (2015-on)


Purpose-built to increase the Gross Vehicle Mass to 3500kg, this Bilstein GVM Upgrade Kit has been engineered specifically for the Toyota Hilux GGN and GUN platforms (2015-on). Developed to meet Australian compliance standards and real-world operating conditions, this solution enhances load carrying capability while maintaining ride control, durability and full regulatory alignment.



Engineered Compliance & Installation Framework


GVM upgrades require formal engineering approval, certification and mod plating in accordance with state legislation. Accordingly, this upgrade can only be installed at an Authorised and Approved Fulcrum Suspension Workshop.


Through our Click & Fit service, you can purchase this GVM kit online and nominate a preferred authorised installer. Following your order, a Fulcrum suspension specialist will contact you to validate vehicle specifications, intended load profile and application requirements to ensure correct configuration and compliance outcomes.


GVM kits are shipped directly to certified dealers and must be installed by an authorised Fulcrum workshop.

  • Pre-registration vehicles: Engineering and certification included at no additional cost.
  • Post-registration vehicles: Additional charges apply due to modification of existing registration records and issuance of a new mod plate. These costs are displayed during the online purchase process when selecting pre- or post-rego status.

Once installed, your Hilux will be engineered, certified and compliant for state registration.


Suspension Performance & Capability


This GVM upgrade delivers a 40–50mm lift on loaded vehicles, with additional ride height when unladen.


Revised Weight Ratings:

  • GVM Increase: Upgraded to 3500kg
  • No GCM increase

This kit is 100% legal, engineered, road tested, approved and certified.


It is ideally suited to:


  • Mining and fleet operations
  • Agricultural applications
  • Trade and service vehicles
  • Touring builds
  • Off-road and recreational users requiring compliant payload capacity

Vehicle manufacturer warranty is not affected when a compliant GVM upgrade is fitted.


All components are tested, assembled and built in Australia.
