Mazda BT-50 TFS, RG04

Mazda BT-50 TFS, RG04 2022-on

3700kg Formula 4x4 GVM Upgrade Kit to suit Mazda BT-50 TFS, RG04 2022-on

GVM Increase to 3700kg


Pre Registration

Post Registration


The most comfortable GVM upgrade kit, both off & on road. Perfect for touring, tough tracks and the beach. Proven in harsh Australian conditions.

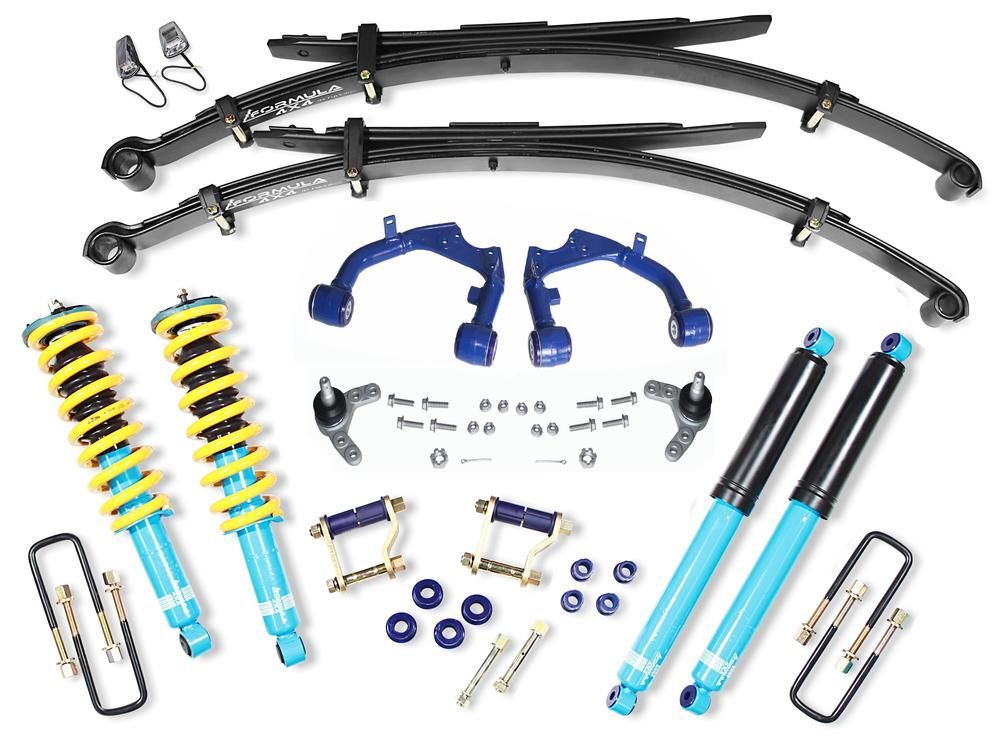

Kit Contains:


Formula 4x4 ReadyStrut Kit 1 x ISUZ101T-FOR, SuperPro Fixed Upper Control Arm Kit 1 x TRC6590, Formula 4x4 Shock Absorbers 2 x 50030, Formula 4x4 Leaf Springs 2 x FLS-150, Formula 4x4 U-bolts 4 x FUB-006

SuperPro Shackle, Pin & Bush Kit 1 x KIT246SK, SuperPro Brake Line Spacer Kit 1 x SPF5319K, CAT 6 Side Direction Indicators 1 x 77ACM2-GVM-IND, Tyre Placard 1 x BT50PLACARD, Load Capacity Label 1 x BT50LOADCL


All GVM Upgrade Kits are supplied with appropriate documentation and can only be fitted by an authorised and approved Fulcrum Workshop.


3700kg Formula 4x4 GVM Upgrade Kit to suit Mazda BT-50 2022-on


GVM upgrades require engineering approval and certification. This means that this GVM upgrade can only be installed at one of our Authorised workshops. Our Click & Fit service allows you to buy this GVM kit online and choose a local installer.  After you have purchased this Formula 4x4 GVM kit and have selected an install location through our Click & Fit service. A Fulcrum suspension expert will contact you to confirm your order details, your requirements, and your vehicle specifications. All to ensure that we give you the right product.


GVM Kits will only be shipped directly to our certified dealers and can only be installed by an authorised and approved Fulcrum Suspension Workshop.


High Level Product Details

  • This GVM kit provides a 40-50mm lift for loaded vehicles, with additional height gains for unloaded vehicles.
  • GVM increase from 3100kg to 3700kg
  • Front Axle Limit: 1650kg (OE 1450kg)
  • Rear Axle Limit: 2050 (OE 1910kg)
  • 100% legal, engineered, road tested, approved and certified.
  • Suitable for Mining Companies, Farmers, Tradesmen, Tourers and offroad enthusiasts
  • Vehicle warranty is NOT affected when a GVM Upgrade is fitted.
  • Tested, assembled and built in Australia.
  • This GVM kit by default includes an aftermarket upper control arm kit (TRC6560) to correct geometry.
  • Once the GVM is installed in your BT-50 it will be engineered and certified to be state compliant.
