GVM Upgrades

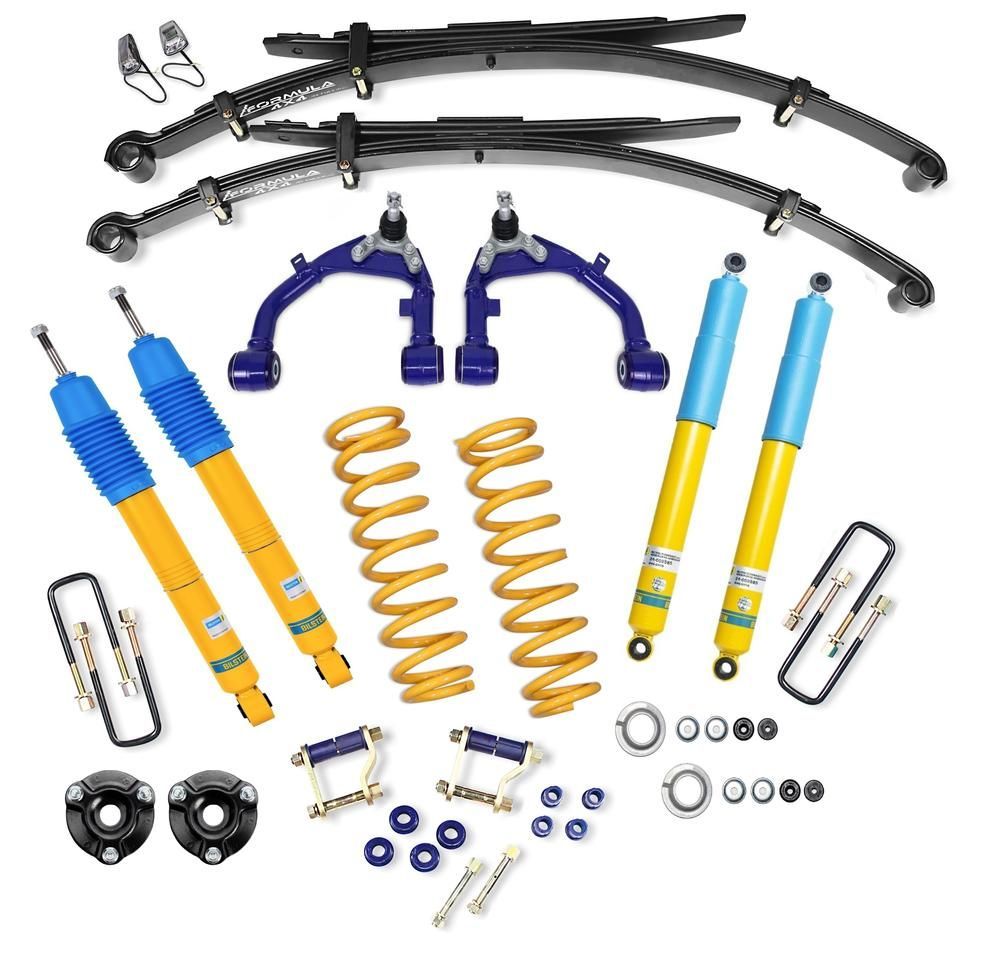

Kit Contains:

Bilstein Shock Absorbers 24-359238 x 2 & 24-322577 x 2, SuperPro Fixed Offset Upper Control Arm Kit TRC6590 x 1, Strut Mounts RS005 x 2, King Springs KTFR-101HT x 1, Formula 4x4 Leaf Springs FLS-150 x 2, Formula 4x4 U-Bolts FUB-006 x 4

SuperPro Shackle, Pin & Bush Kit KIT246SK x 1, SuperPro Brake Line Spacer Kit SPF5319K x 1, Cat 6 Indicators 77ACMB-LCSAHARA x 1, Tyre Placard DMAXPLACARD x 1, Load Capacity Label DMAXLOADCL x 1, Document Kit

All GVM Upgrade Kits are supplied with appropriate documentation and can only be fitted by an authorised and approved Fulcrum Workshop.

3700kg Bilstein GVM Upgrade Kit to suit Isuzu D-Max TFS / RG01 (2021-on)

Purpose-built to increase the Gross Vehicle Mass from 3100kg to 3700kg, this Bilstein GVM Upgrade Kit has been engineered specifically for the Isuzu D-Max TFS / RG01 platform (2021-on). Developed to meet Australian compliance standards and operating conditions, this solution enhances load carrying capability while maintaining ride control, durability and regulatory alignment.

Engineered Compliance & Installation Framework

GVM upgrades require formal engineering approval, certification and mod plating in accordance with state legislation. Accordingly, this upgrade can only be installed at an Authorised and Approved Fulcrum Suspension Workshop.

GVM kits are shipped directly to certified dealers and must be installed by an authorised Fulcrum workshop.

Pre-registration vehicles: Engineering and certification included at no additional cost.
Post-registration vehicles: Additional charges apply due to modification of existing registration records and issuance of a new mod plate. These costs are displayed during the online purchase process when selecting pre- or post-rego status.

Once installed, your D-Max will be engineered, certified and compliant for state registration.

Suspension Performance & Capability

This GVM upgrade delivers a 40-50mm lift on loaded vehicles, with additional ride height when unladen.

Revised Weight Ratings:
